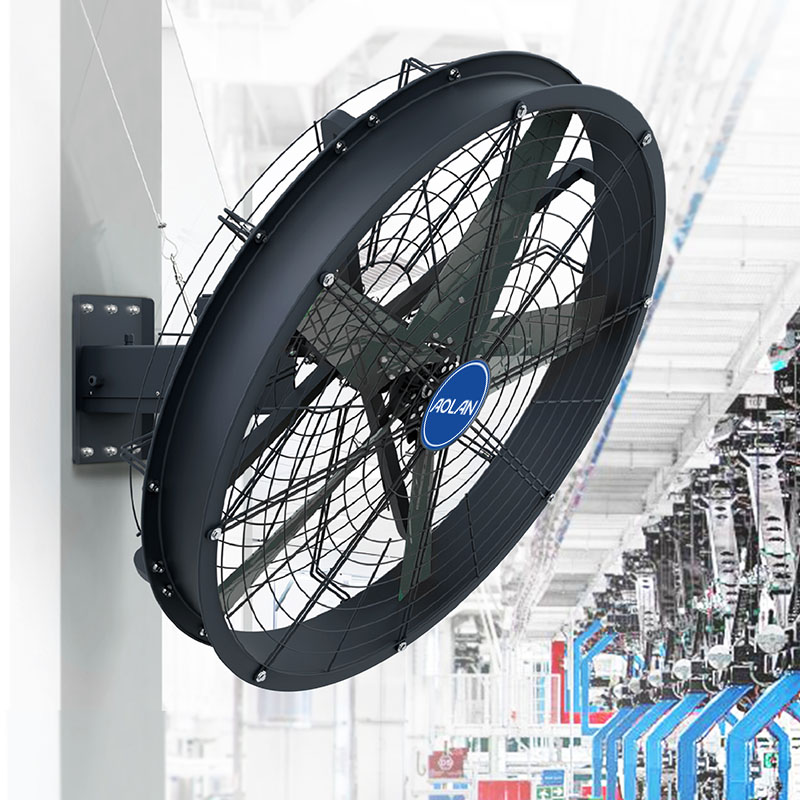

Aolan 0.6 0.9 1.2m Oscillation Wall Fan Electric Wall Mounted With Strong Wind HVLS Fan for Warehouse Workshop Gym

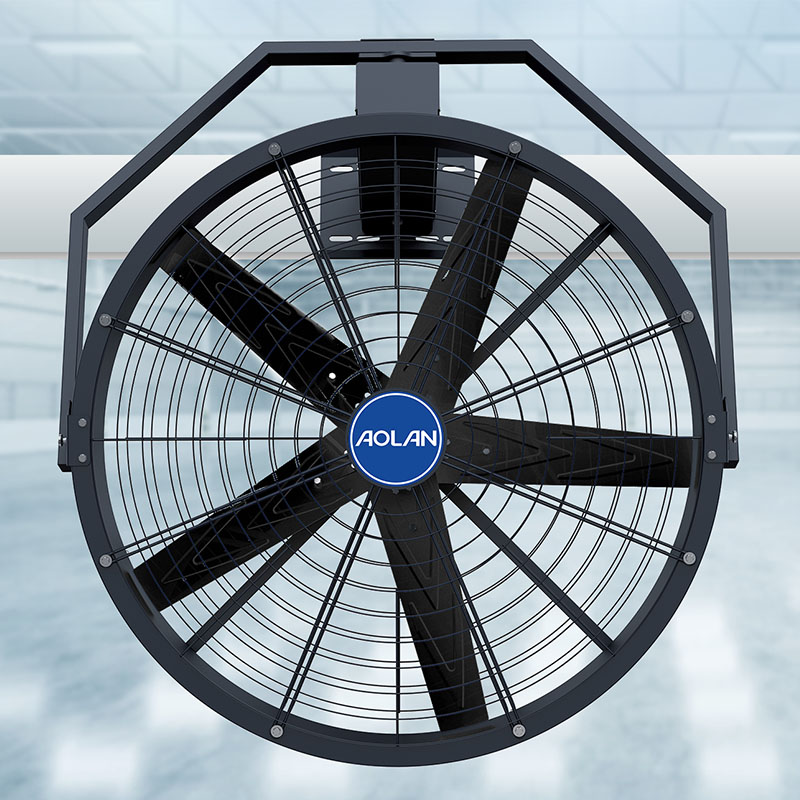

PERMANENT MAGNET VARIABLE FREQUENCY WALLFAN
0.6m 0.9m 1.0m 1.1m 1.2m Wall Fan Oscillating Type
Aolan HDB series permanent magnet variable frequency wall fan ,with unique wing design, produce like the breeze system of nature, the body will feel three-dimensional wind from all directions, increased sweat evaporation area, increase your comfort level.In the open space, the industrial energy-saving mobile fan's maximum blowing distance is 24 meters.
モーター :
ADS-B09AJ電源（V/Hz） :
220/380/460V / 50/60HZノイズ :
≤45 dBA力 :
550W風量(m3/h) :
16000スピード :
6.8Current(A) :
2.3/1.2Air Supply distance (m) :
≤20Rotating Speed (rpm) :
870PERMANENT MAGNET VARIABLE FREQUENCY WALLFAN
0.6m 0.9m 1.0m 1.1m 1.2m Wall Fan Oscillating Type
Aolan HDB series permanent magnet variable frequency wall fan ,with unique wing design, produce like the breeze system of nature, the body will feel three-dimensional wind from all directions, increased sweat evaporation area, increase your comfort level.
At the same time avoid the use of traditional high-speed fan in the direction of the wind all year round, causing a variety of human health problems, greatly improve the comfort of the environment.
HDB series fans can be combined with the actual needs of different occasions to adjust the wind volume, the wind speed in the range of 1m-6.7m /s can be arbitrarily adjusted.In the open space, the industrial energy-saving mobile fan's maximum blowing distance is 24 meters.
Big Sized Wall Fans Air move series Main Features
1. Super large air volume: Ultra-long air blowing, the effective distance is more than 25m;
2. Energy saving: With only 0.75KW power, very low energy saving;
3. Quiet & Low noise: Low noise with only 39DB level.
4. Stepless Speed Control: PMSM motor driving fan blade, VFD stepless peed control, easy to operate;
5. Waterproof/Dustproof: Protection level is IP55, waterproof in overall.
6. Durable: All materials of appearance are treated with spray-painted , the barrel is 2mm thick, the ovrall hollowing out to reduce weight.
Specification:
| Model/Specs |
ADS-B06AJ | ADS-B09AJ | ADS-B10AJ | ADS-B11AJ | ADS-B12AJ |
| Voltage (V) | 220/380 | 220/380 | 220/380 | 220/380 | 220/380 |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Current (A) | 2.6/1.3 | 2.3/1.2 | 3.0/1.5 | 3.0/1.5 | 2.6/1.3 |
| Power (W) | 550 | 550 | 750 | 750 | 750 |
| Rotating speed (r/min) | 1050 | 870 | 750 | 690 | 600 |
| Air flow (m³/) | 10200 | 16000 | 20000 | 22000 | 26000 |
| Noise （dB(A)） | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 |
| Air speed(m/s) | 6.8 | 6.8 | 6.8 | 6.8 | 6.8 |
| Air supply disrance(m) | ≤15 | ≤20 | ≤20 | ≤20 | ≤20 |
Characteristics:

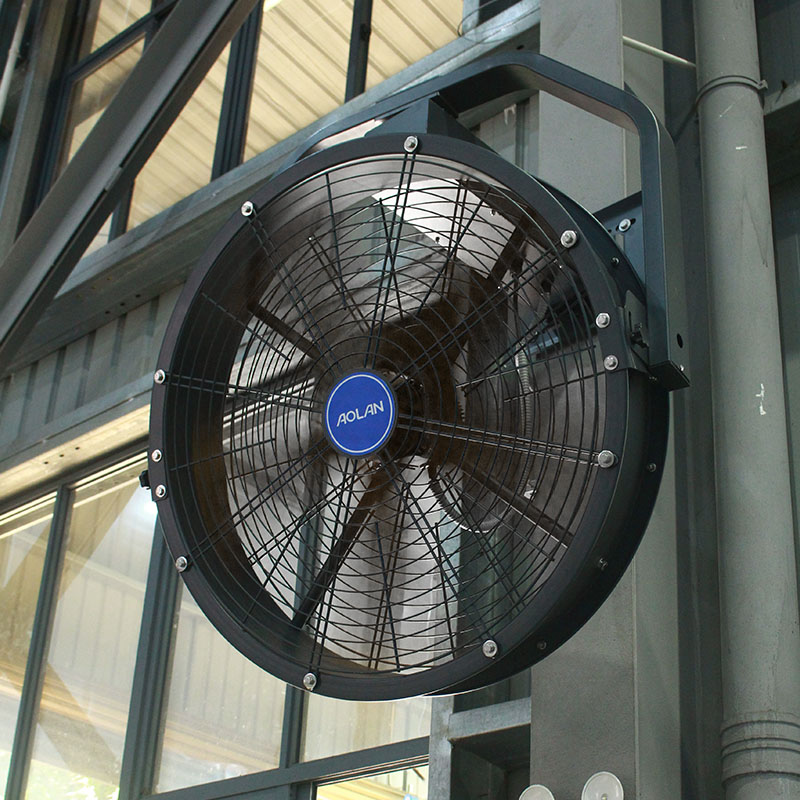

EASY HANGING SYSTEM
Simply hang the safety rope from the celing secre the fan to a post or wall and plug itin. The safety rope is corrosion resistan,vibration-resistant,and breakresistant for years of trouble-free use.It is even possible to change the length of the safety cord and mount the fan at an angle to direct airflw to cerain areas or along long channels.

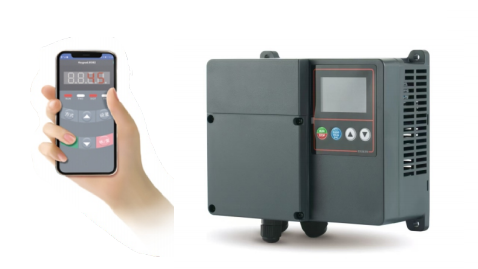

SMART CONTROL SYSTEM MPERMANENT MAGNET SYNCHRONOUS MOTOR

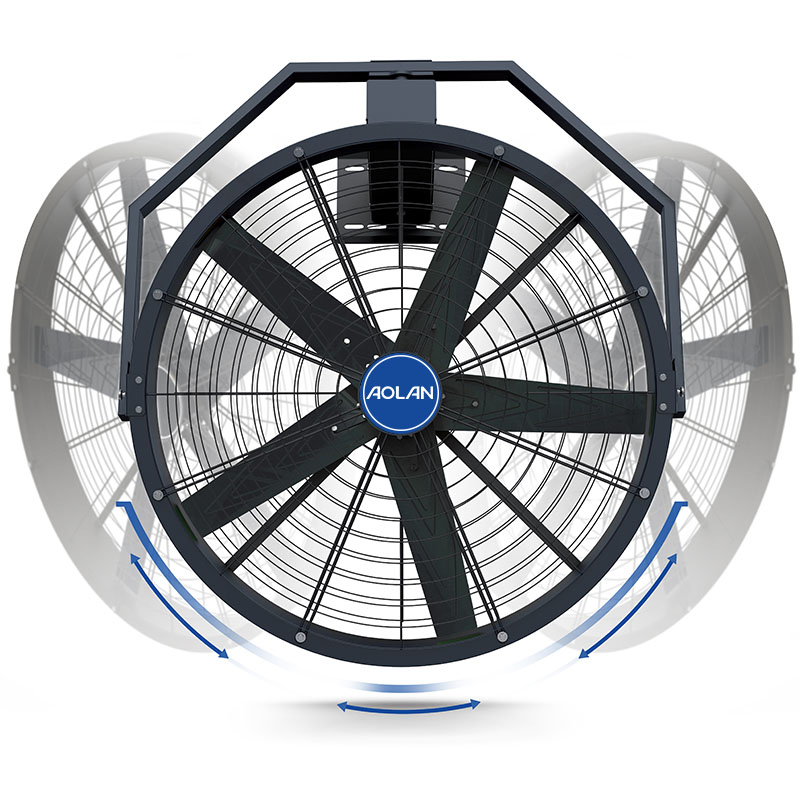

LEFT AND RIGHT SHAKING FUNCTION
The fan is equipped with an independent automatic switch shaking function,which can swing left and right at a wide angle of 40 degrees to project the airflow to the maximum usage area.
Aolan HVLSファンは、空気力学的なブレードを使用して気流と尾流を発生させ、乱流を形成します。 流れを制御し、制御システムを通じて0.25～3.5m/sの地上気流を発生させ、 環境快適性を向上させます。有効カバーエリアは1700平方メートルに達します。 メートル（直径46メートル）。
もっと見る

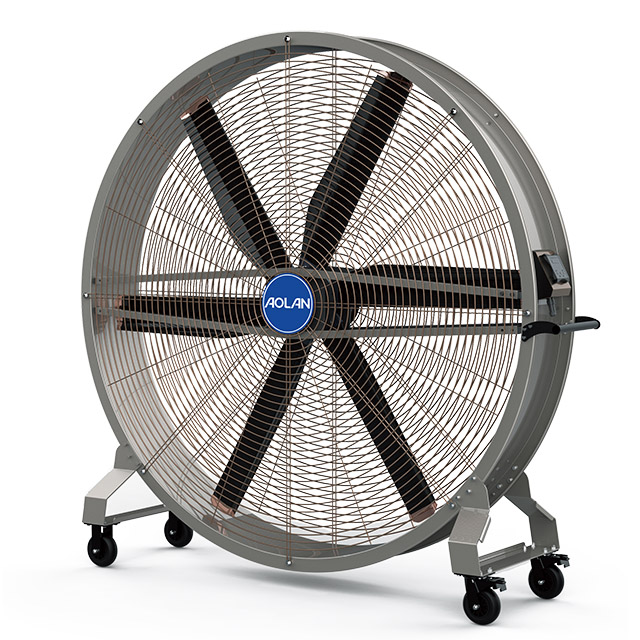

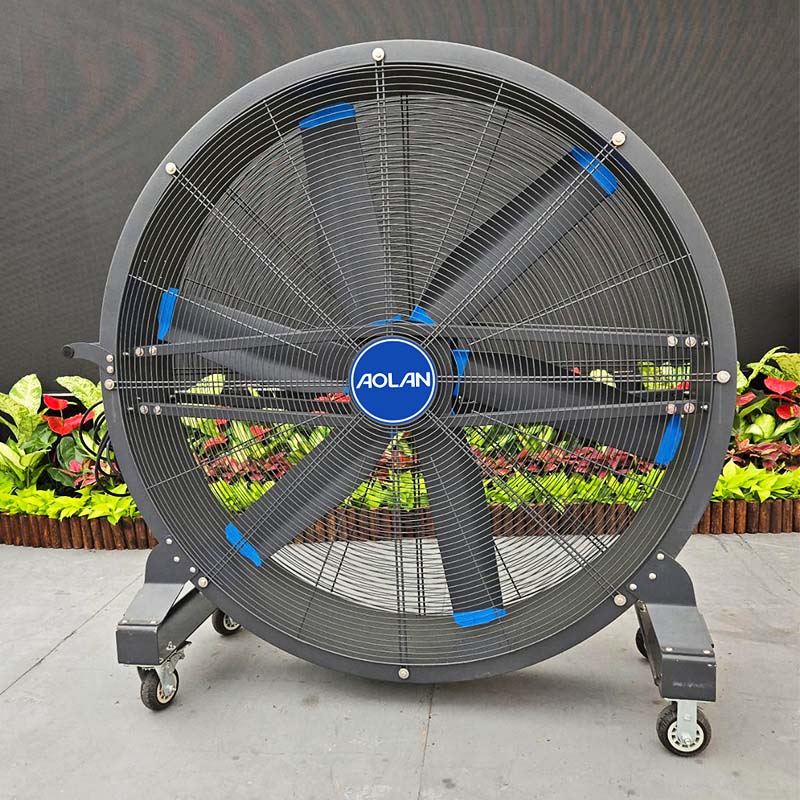

Aolan ADS-Y series fans can be combined with the actual needs of different occasions to adjust the wind volume, the wind speed in the range of 1m-6m /s can be arbitrarily adjusted.In the open space, the industrial energy-saving mobile fan's maximum blowing distance is 28 meters.
もっと見る
PERMANENT MAGNET VARIABLE FREQUENCY WALLFAN 0.6m 0.9m 1.0m 1.1m 1.2m Wall Fan Oscillating Type Aolan HDB series permanent magnet variable frequency wall fan ,with unique wing design, produce like the breeze system of nature, the body will feel three-dimensional wind from all directions, increased sweat evaporation area, increase your comfort level.In the open space, the industrial energy-saving mobile fan's maximum blowing distance is 24 meters.
もっと見る
PERMANENT MAGNET VARIABLE FREQUENCY WALLFAN 0.6m 0.9m 1.0m 1.1m 1.2m Wall Fan Oscillating Type Aolan HDB series permanent magnet variable frequency wall fan ,with unique wing design, produce like the breeze system of nature, the body will feel three-dimensional wind from all directions, increased sweat evaporation area, increase your comfort level.In the open space, the industrial energy-saving mobile fan's maximum blowing distance is 24 meters.
もっと見る

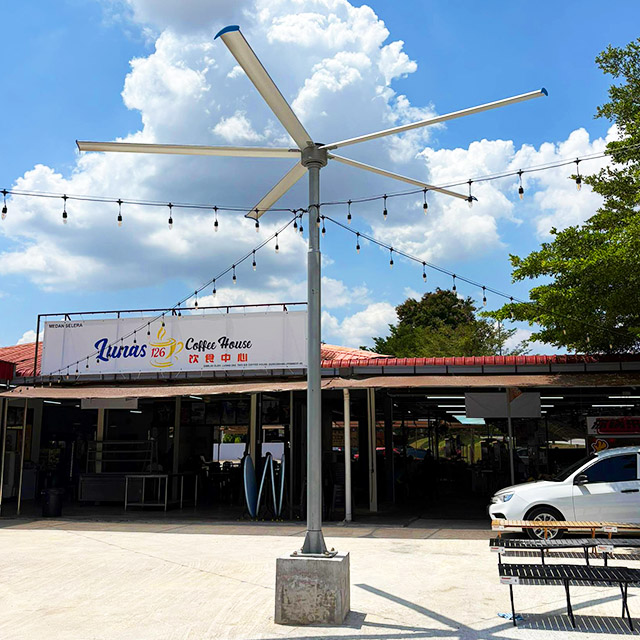

AOLAN VErtical FAN 3-7.3m large outdoor use pole fan Our ADS-L series smart permanent magnet large outdoor stand fan is a new product specially developed for outdoor natual ventilation system. Self-designed variable frequency speed control, high efficiency and energy saving permanent magnet external rotor motor drive. It has the advantage of low noise, small volume, lightweight, compact structure and beautiful appearance.
もっと見る
AOLAN VErtical FAN 3-7.3m large outdoor use pole fan Our ADS-L series smart permanent magnet large outdoor stand fan is a new product specially developed for outdoor natual ventilation system. Self-designed variable frequency speed control, high efficiency and energy saving permanent magnet external rotor motor drive. It has the advantage of low noise, small volume, lightweight, compact structure and beautiful appearance.
もっと見る
Aolan HVLSファンは、空気力学的なブレードを使用して気流と尾流を発生させ、乱流を形成します。 流れを制御し、制御システムを通じて0.25～3.5m/sの地上気流を発生させ、 環境快適性を向上させます。有効カバーエリアは1700平方メートルに達します。 メートル（直径46メートル）。
もっと見る

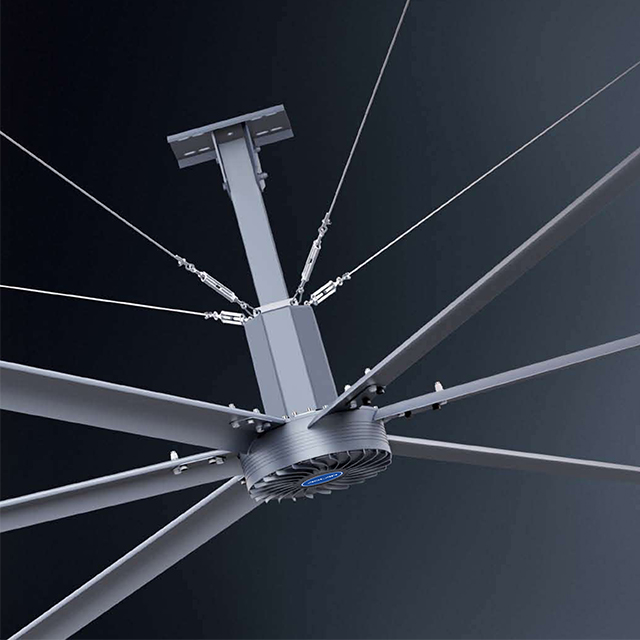

Aolan HVLS fans use aerodynamic blades to generate airflow and tail to form turbulence flow, and generate 0.25-3.5m/s ground air flow through the control system, which greatly improves environmental comfort. The effective coverage area can reach 1700 square meters (diameter 46 meters).
