Aolan Giant Waterproof Portable Movable Fan Electric with 220V 380V AC Motor HVLS for Space Ventilation

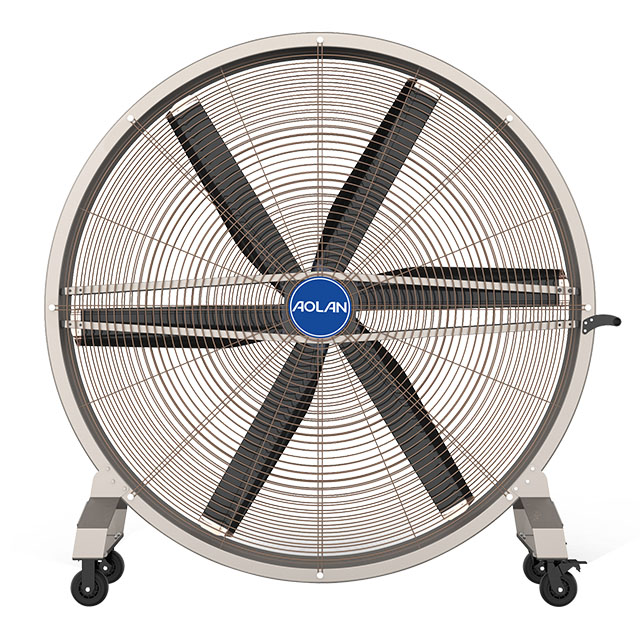

THE PM VFD MOVABLE FAN

Aolan ADS-Y series the PM VFD movable fan unique wing design, straight blade diameter from 1~2m, adopting the principle of aerodynamics and advanced technology manufacturing blades wing, formed by strong air agitation ability of circulation flow field, produce like the breeze system of nature, the body will feel three-dimensional wind from all directions, increased sweat evaporation area,increase your comfort level. At the same time avoid the use of traditional high-speed fan in the direction of the wind all year round, causing a variety of human health problems, greatly improve the comfort of the environment.

ADS-Y series fans can be combined with the actual needs of different occasions to adjust the wind volume, the wind speed in the range of 1m-6m /s can be arbitrarily adjusted.In the open space, the industrial energy-saving mobile fan's maximum blowing distance is 28 meters.

Specification:

Characteristics:

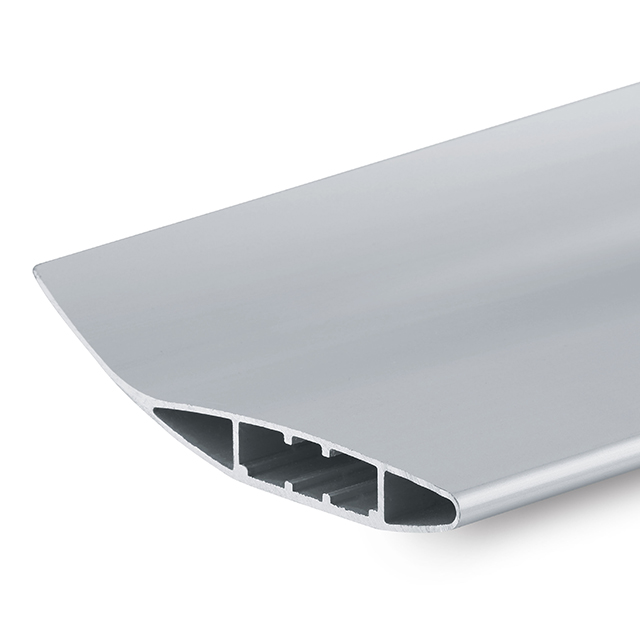

STREAMLINED FAN BLADE

It is made of aluminum and magnesium alloy extruded and stretched, and has the advantages of high strength, good toughness, light weight, long life and safe operation. The fan blade surface is treated with T5+ bright surface oxidation treatment. which enhances the corrosion and oxidation resistance of the fan blade and can cope with special environmental operations.

ENERGY SAVING TAIL

When the fan blade is running, the air will generate vortex at the end of the aerofoil fan blade. The tail wing can eliminatethis part of energy loss, stabilize the fan operation, and make the air flow more consistent with the aerodynamic principle.

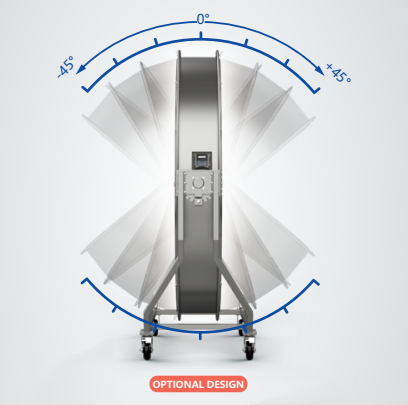

ADJUSTABLE AIR SUPPLY ANGLE   In different places of use,the fan's air delivery angle needs to be more flexible and versatile, this time the adjustable angle of the Model B movable fan can make a big difference.Pitch angle adjustable range of-45°~+45° (horizontal blowing for 0²), 15° a gear, a total of 7 gears.

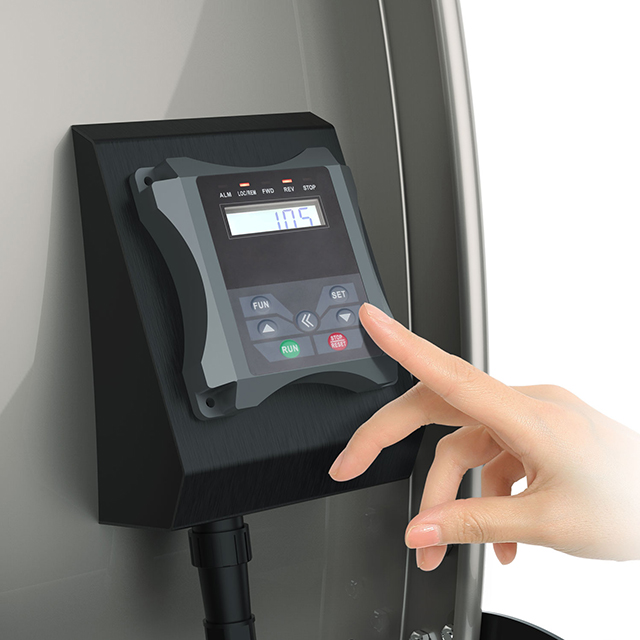

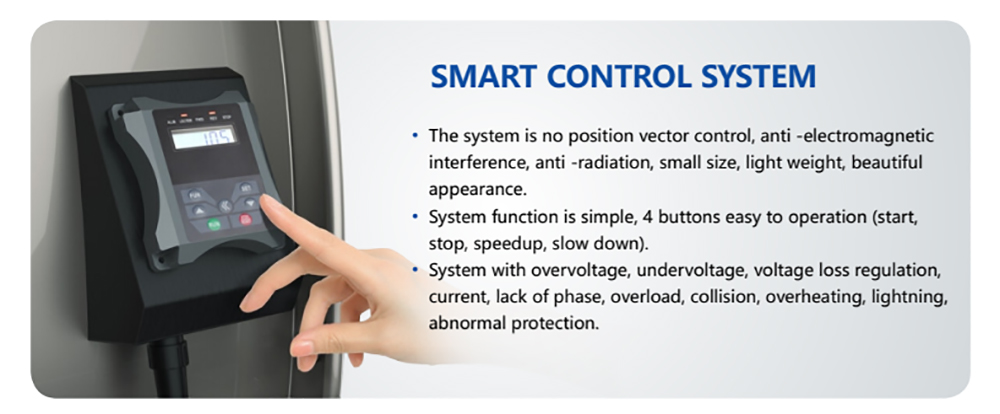

EASY TO OPERATION

Knob speed control (S): Small and convenient, easy to operation. Power saving and durable. Quickly switch the forward

and reverse directions of the motor.

Push-button speed control (M): with LED indicator light, compact structure, which can reduce the risk of dust

accumulation and penetration, high protection level of button operation.

Four-button operation (M): start, stop, accelerate, decelerate.

Five-key operation (S): programming key, running key, stop key, confirmation key, encoder button.

Digital display (S/M): display function parameters and setting values, various operation data fault cause codes, the state

of the operation panel and the frequency conversion operation state, which is convenient for personnel to maintain in time.

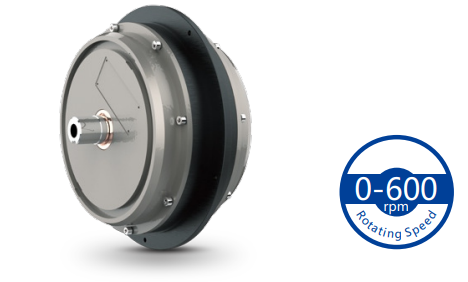

PERMANENT MAGNET SYNCHRONOUS MOTOR

FEATURES:

● Without rotor losses.

● High efficiency and precision.

● Large power factor.

● Improve grid operating environment.

● Frequency modulation width (0~200HZ).

● Small size and light weight.

●Saving energy and high efficient.

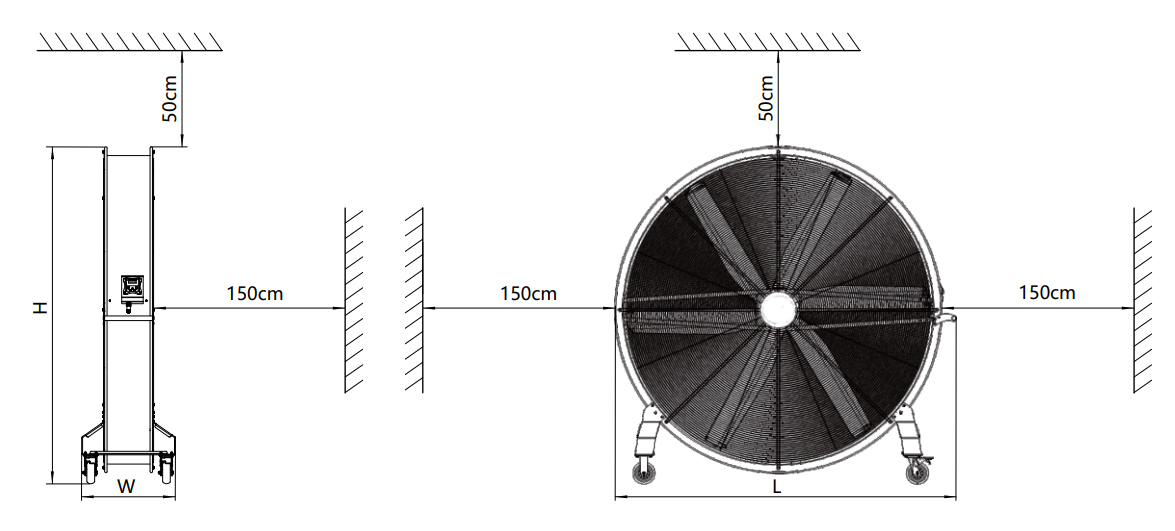

PLACEMENT ENVIRONMENT

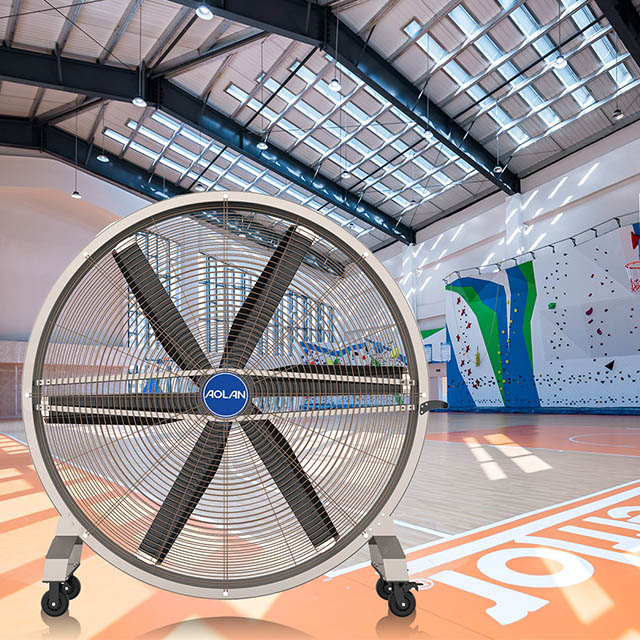

APPLICATIONS

Widely used in fitness center, outdoor wedding venues. industrial factory, logistics warehousing, waiting room, exhibitionha,physicaleducationhalland otherlargespaceplaces,asanewtypeof ceilingfanspaceventilation, personnelcoolingltcanpushalargeamountofairlwtotheground,formingacertainheightofthmoving airflow layer, thus contributing to the overall air circulation; Like the natural breeze system, enjoy the intimate experience of natural wind.
