工業用蒸発式空気冷却器

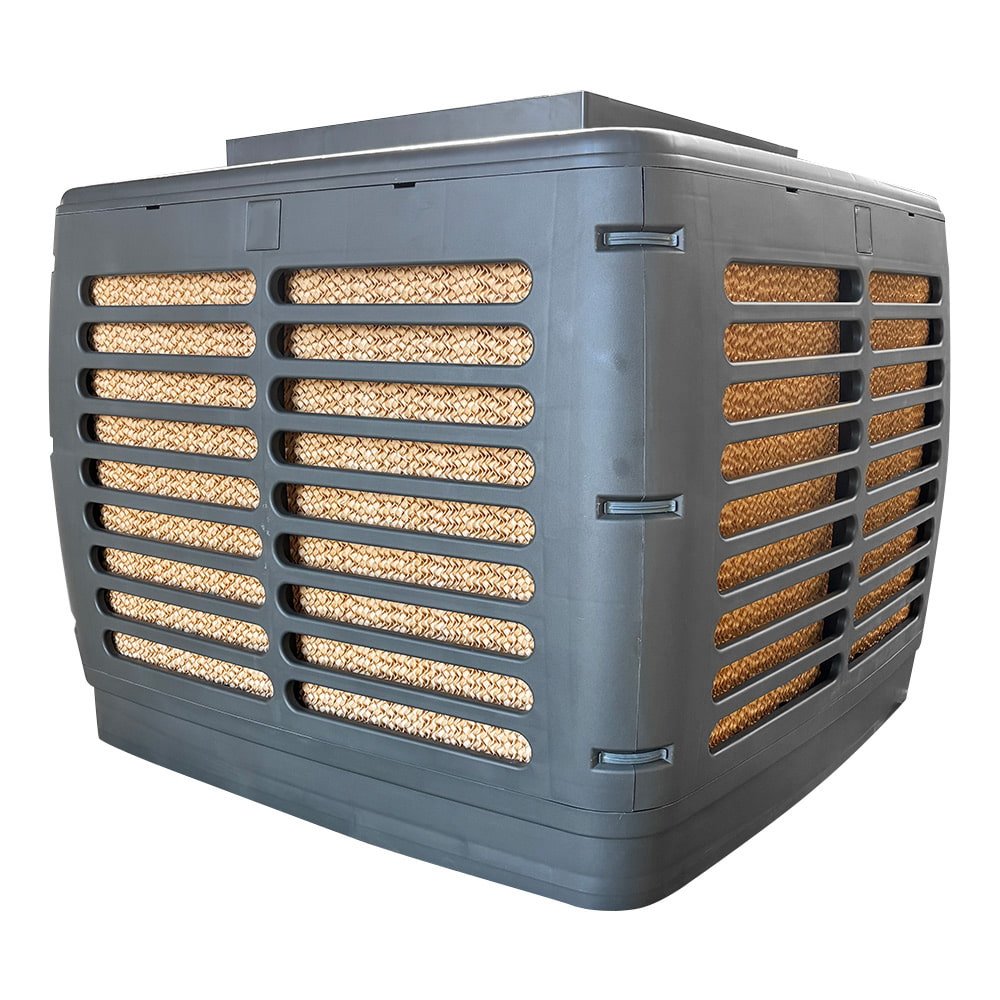

AZL16-LX10JZ 16000CMH Roof Mounted Industrial Air Cooler Desert Cooler

AZL16-LX10JZ 16000CMH Roof Mounted Industrial Air Cooler Desert Cooler



Welcome to wholesale industrial air coolers from Aolan factory. Our Industrial Evaporative Air Cooler is used for small and medium-sized industrial plants, semi-open venues, outdoor exhibition venues, agricultural and animal husbandry bases, etc.

  • モデル :

    AZL16-LX10JZ
  • 注文(最小注文数量) :

    1
  • 製品の原産地 :

    China
  • ノイズ :

    ≤63 dBA
  • 力 :

    220V/1PH/50HZ (customize)
  • 水容量 :

    100 L
  • コントローラ :

    LED Control
  • ファン速度 :

    6.5
  • 説明

Airflow Water Cooling air Cooler Industrial Evaporative Air Cooler Warehouse Factory Cooling System



This energy-efficient cooling unit effectively reduces the ambient temperature by 5-15 degrees Celsius. It features a low-water protection system that automatically stops the pump and issues a warning to prevent damage. The cooling pads are designed for easy removal and rinsing, offering great convenience. With low operating costs, it saves over 80% more electricity than traditional air conditioners. Additionally, it comes with a wide range of optional functions, including pre-cooling, auto-cleaning, timer on/off, vent mode, forced pump start, memory settings, pre-dust filter, winter filter, ozone generation, and motor filter.



Specification:




Model/Specs
AZL16-LX10JZ
AZL16-LS10JZ
AZL16-LC10JZ
X-down discharge,S-up discharge,C-side discharge
Electric source 220V/1PH/50HZ (customize)
Power 1000W
Rated Current 6.5A
Airflow 16000m³/h
Fan Type Centrifugal Fan
Fan Speeds Multi-speed, Inverter
Pressure 170Pa
Vent Size (L*W) 555*555mm
Noise ≤63dBA
Dimension (L*W*H)

1078*1078*1020 (down)

1078*1078*1055 (up)

1104*1078*1020 (side)

Pad Size (L*W*H)

(608+30)*732*100

(608+30)*732*80

Net Weight (±3kg)

64(down)/ 66(up)/ 76(side)

Water Capacity

100L

Controller LED Control
Cabinet material Plastic
Pre-cooling Optional
Group-control Optional
Tem&hum Control Optional
Loading quantity (1 40'HQ) 40(down/up/side)







Characteristics:

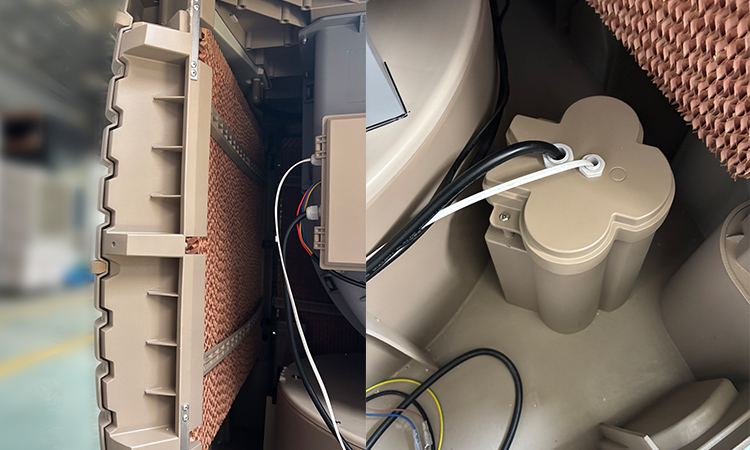

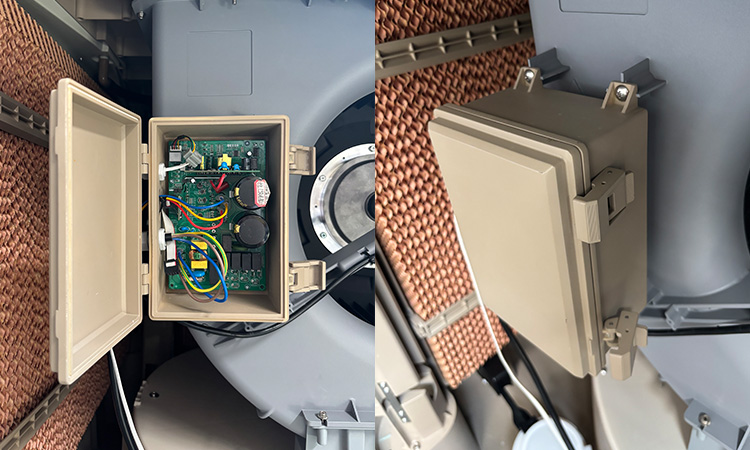

Control Box : water proof box with a buckle,easy for maintenance and inspection
evaporative cooling manufacturers

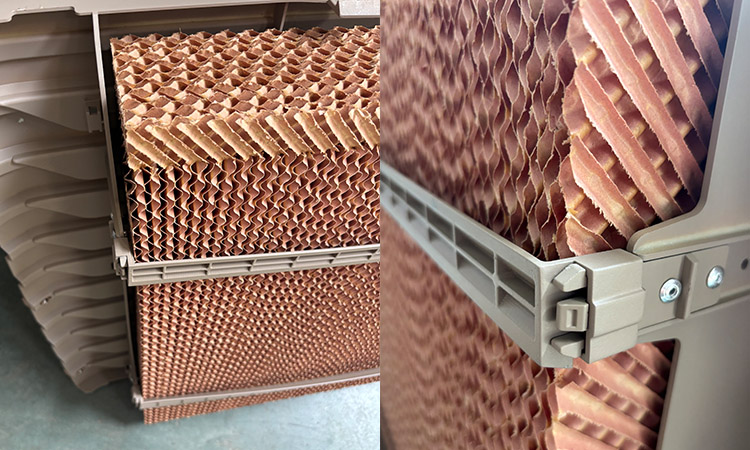

Retaining strips hold the pad in place for even water distribution.  Using Buckle instead of screws, change the pad easier.
factory evaporative cooling




New thickened engineering materials,to eliminate secondary materials. High temperature resistance,
strong thermal resistance, good toughness, not easy to deformation.
chiller air cooler

Air outlet and top cover are integrally injection-molded, ensuring good waterproofing and leak resistance.
Common designs use a cut-out top with metal outlets, which may cause air leakage and rust over time.
industry fan

More advantages:

1) Reduce the ambient temperature around 5-15 degree.

2) Protection: pump will stop automatically to protect the pump when the water level is low and give warnings.

3) Cooling pad easy to move and flush away, very convenient.

4) Low running cost (save you over 80% electricity than traditional air conditioner).

5) Many many optional functions like pre-cooling function, auto-clean function, timing switch down/off, vent function, compulsively start pump, memory function, pre-dust filter, winter filter, ozone, motor filter, etc.
